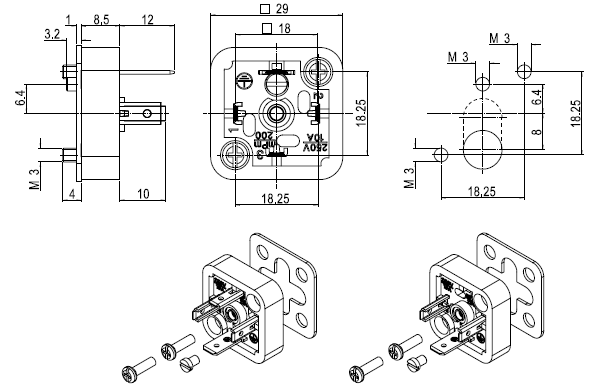

MPM B202000N2 B203000N2 底用座座

code

B202000N2

B203000N2

standard order no.

121012-0013

121012-0019

nominal voltage

25.0V AC/300V DC

Poles

2 + Ground

3 + Ground

max. Wire sect.

1.00mm 2

mate with

Form A 2 Poles

Form A 3 Poles

Base with external fixing screw for assembly on flat surface. This base allow to solder wire in front or back of the base.

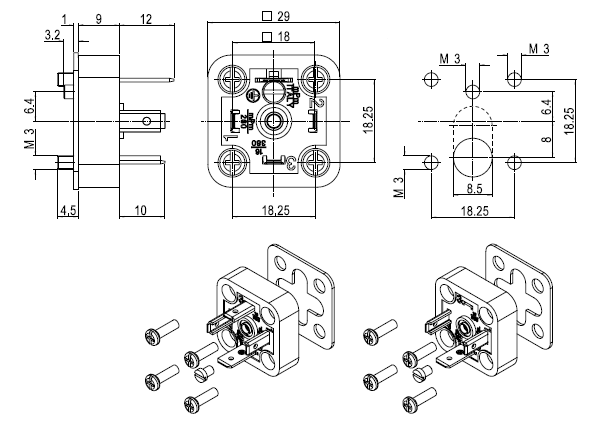

code

B26.2000N2

B26.3000N2

standard order no.

121012-0071

121012-0076.

nominal voltage

25.0V AC/300V DC

Poles

2 + Ground

3 + Ground

max. Wire sect.

1.00mm 2

mate with

Form A 2 Poles

Form A 3 Poles

Base with external fixing screw for assembly on flat surface.

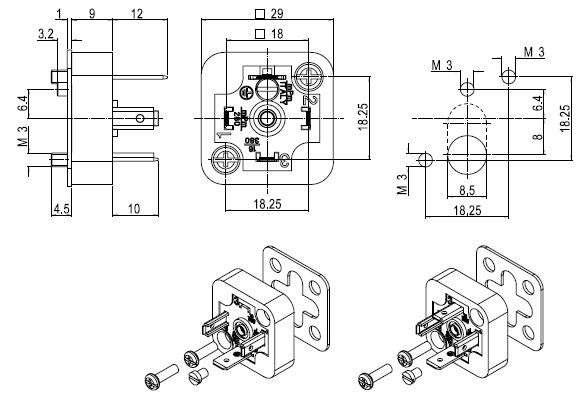

code

B28.2000N2

B28.3000N2

standard order no.

121012-0095.

121012-0099

nominal voltage

25.0V AC/300V DC

Poles

2 + Ground

3 + Ground

max. Wire sect.

1.00mm 2

mate with

Form A 2 Poles

Form A 3 Poles

Base with external fixing screw for assembly on flat surface.

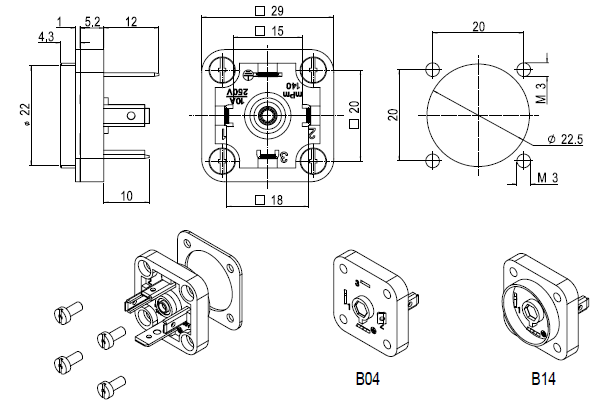

code

B142000N2

B143000N2

standard order no.

121012-0006.

121012-0007

code

B042000N2

B043000N2

standard order no.

121012-0001

121012-0003

nominal voltage

25.0V AC/300V DC

Poles

2 + Ground

3 + Ground

max. Wire sect.

1.00mm 2

mate with

Form A 2 Poles

Form A 3 Poles

Base with external fixing screw for assembly on flat surface with hole max. Diam. 22,5.mm.
