MPM B292000N2 B293000N2传感器底座 9.4mm
该产品用于开关传感器提供DIN底座，在需要的地方配置固定螺钉和垫圈。该系列涵盖了最重要和最常见的应用。
121012 Form A, Ext. Thread, Electronic 针距9.4mm
常用型号：
B292000N2 B293000N2 B392000N0 B393000N0
|
code |
B292000N2 |
B392000N0 |
standard order no. |
121012-0102 |
121012-0126. |
nominal voltage |
25.0V AC/300V DC |
Poles |
2 + Ground |
2 + Ground |
max. Wire sect. |
0,75.mm 2 |
0,75.mm 2 |
mate with |
Form Micro 2 Poles |
Form Micro 2 Poles |
B292 base with external fixing screw for assembly on flat surface. B392 for assembly on surface with hole Diam. 15.mm |
code |
B293000N2 |
B393000N0 |
standard order no. |
121012-0107 |
121012-0127 |
nominal voltage |
25.0V AC/300V DC |
Poles |
3 + Ground |
3 + Ground |
max. Wire sect. |
0,75.mm 2 |
0,75.mm 2 |
mate with |
Form Micro 3 Poles |
Form Micro 3 Poles |

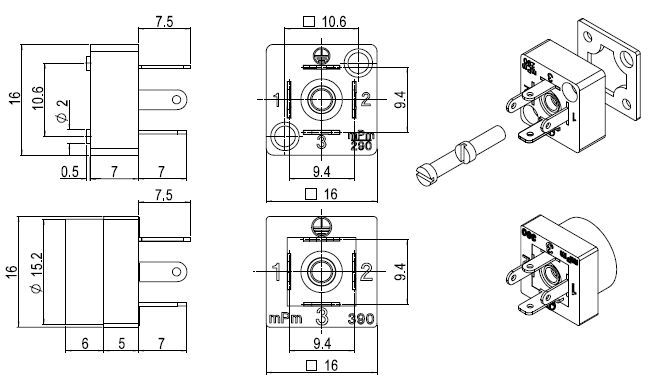

B293 base with external fixing screw for assembly on flat surface. B393 for assembly on surface with hole Diam. 15.mm. |
|
|
| |
